Cooling Module

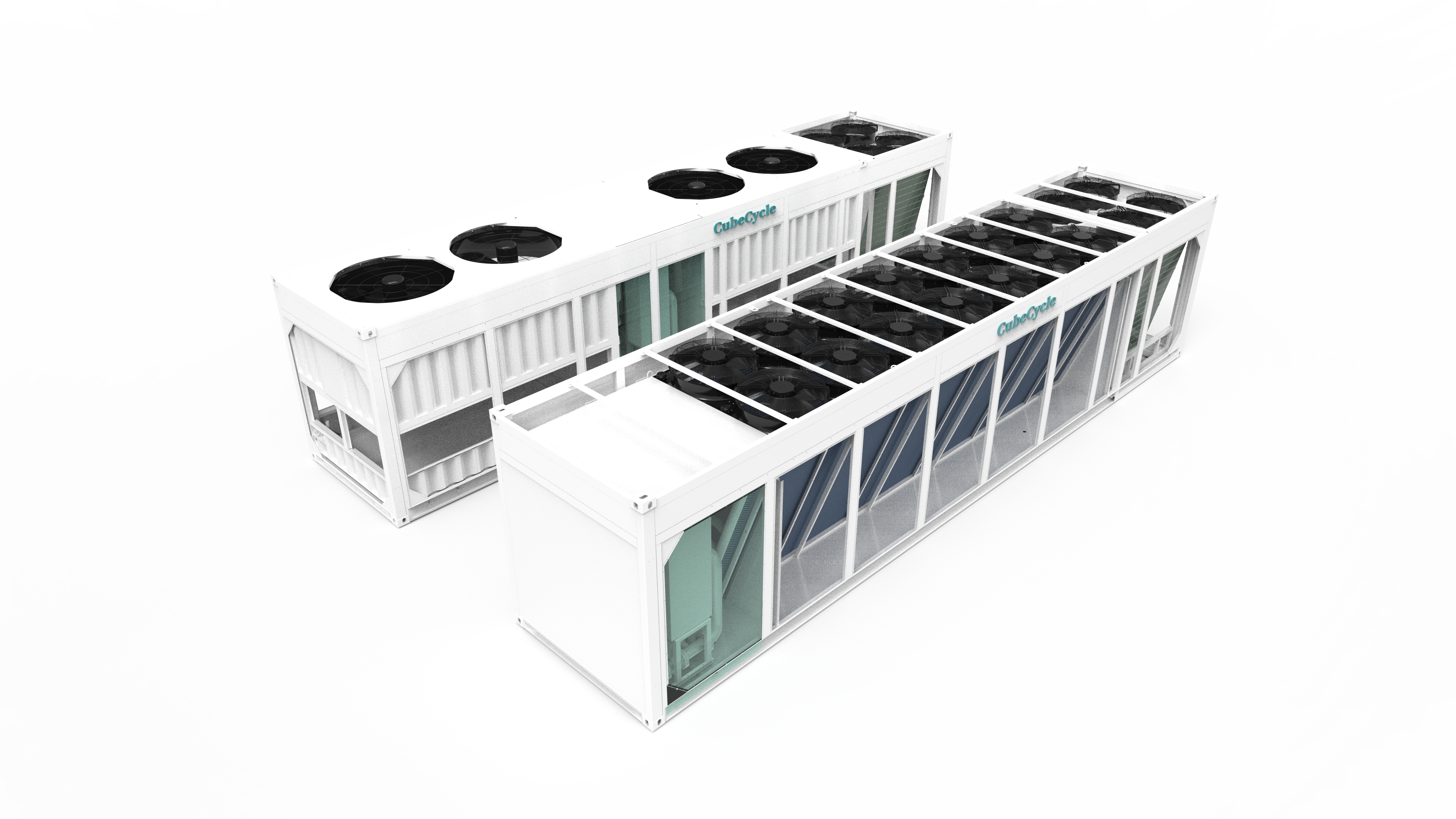

冷却模块Cooling Module

冷却模块是高效散热的关键，支持干冷塔/湿冷塔两种散热模式，标准化 40 尺高柜集装箱封装，确保 AI 集群稳定运行。The Cooling Module is the heat dissipation key — with dry/wet cooling tower options in standard 40ft containers, ensuring stable AI cluster operation.

核心特性Key Features

❄️

高效散热High-Efficiency Cooling

干冷/湿冷双模式，智能化温控，PUE 低至 1.1。Dry/wet dual-mode cooling with intelligent temperature control. PUE as low as 1.1.

🔄

冗余设计Redundant Design

冷塔、空调、水泵均支持 N+1 冗余，单点故障不影响运行。N+1 redundancy for cooling towers, AC units, and pumps — no single point of failure.

🌿

低耗运行Low-Power Operation

AI 智能调节冷却策略，根据负载动态优化能耗。AI-optimized cooling strategies that dynamically adjust based on real-time load.

技术规格Technical Specifications

模块尺寸 长×宽×高Module Dim (L×W×H)12192×2438×2896 mm12192×2438×2896 mm
散热功率Cooling Capacity1600 KW (2N)1600 KW (2N)
供水温度 @25℃ 环境温度Water Supply @25℃ Amb32℃32℃
冷塔冗余Cooling Tower2 套（1+1）2 sets (1+1)
空调外机AC Units4 台（3+1）4 units (3+1)
水泵冗余Pump Redundancy2 台（1+1）2 units (1+1)
设计寿命Design Life10 年10 years
散热模式Cooling Mode干冷/湿冷可选Dry/Wet optional
工作温度Operating Temp-15~50℃-15~50℃
